PV Power Generation Business
Purpose of the Business
- It is a system that makes it mandatory for the power generation company (the mandatory supplier)
having a power generation equipment above a certain scale (500mW but excluding the new renewable energy equipment) to supply a certain ratio or higher of the total power generation using the new renewable energy.
Related regulations
- Article 12-5 of the Act on the Promotion of the Development, Use and Diffusion of New and Renewable Sources of Energy
- Management and Operating Instruction of the Mandatory New and Renewable Energy Supply System
and the Mandatory Fuel Mixing System (Notification from the Ministry of Commerce, Industry and Energy #2017-204)
- Regulations on the Issuance of Supply Certificates and Operation of the Trading Market (Announcement of Korea New Renewable Energy Center #2017-21)
Content of the Business
The Scope of the Mandatory Supplier
(Totally 21 entities in 2018) Korea Hydro and Nuclear Power, Korea South-East Power Company, Ltd., Korea Midland Power Company, Ltd.,
Korea Western Power Company, Ltd., Korea Southern Power Company, Ltd., Korea Eastern Power Company, Ltd., Korea District Heating Corp.,
Korea Water Resources Corporation, SK E&S, GS EPS, GS Power, POSCO Energy, CGN Yulchon Power, Hyeongtaek Energy Service, Daeryun Power Company, Ltd., S Power, Pocheon Power,
Dongducheon Dream Power, Paju Energy Service, GS Donghae Electric Power Company, Ltd., Pocheon IPP Co., Ltd.
-
- Mandatory supply amount = Total generation amount of the mandatory supplier
(excluding the new renewable energy generation amount) x mandatory ratio

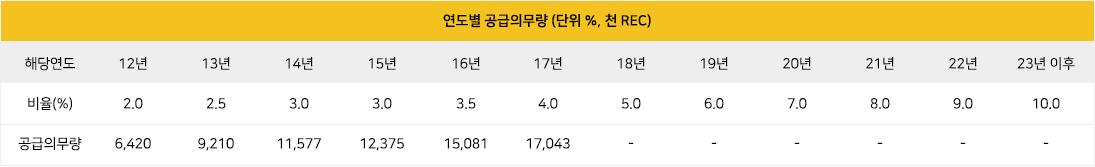

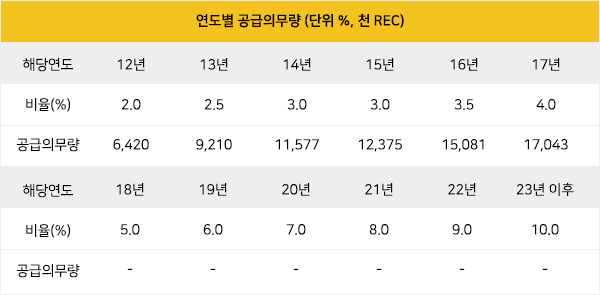

- Ratio of mandatory supply amount by year
(Attached table 3: The Enforcement Decree of Act on the Promotion of the Development, Use and Diffusion of New and Renewable Sources of Energy)
- Mandatory supply amount by year shall be fixed through reannouncement
in September after the preliminary announcement at the end of January of the relevant year
Renewable Energy Certificate
Renewable Energy Certificate (REC, Renewable Energy Certificate)
The certificate issued on the MWh basis by multiplying the weight by the power amount which the equipment supplies subject to the issuance of REC,
and it certifies that the power generation company produced and supplied electric power using the new renewable energy equipment. The mandatory supplier can cover
the mandatory supply amount by purchasing the REC of the new renewable energy.

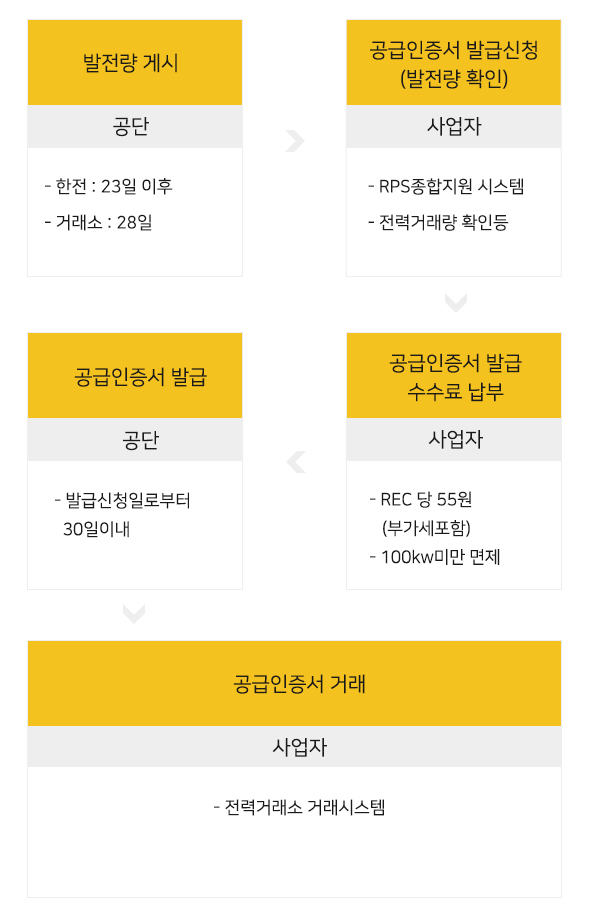

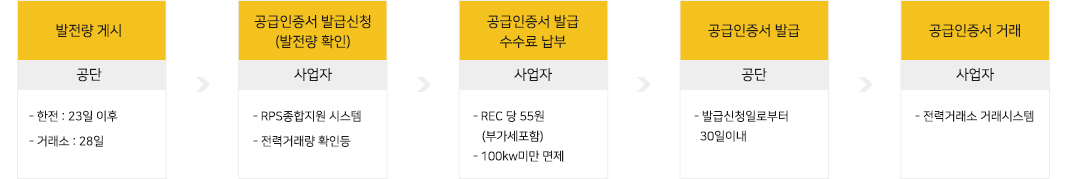

Issuance and transaction procedure of the REC

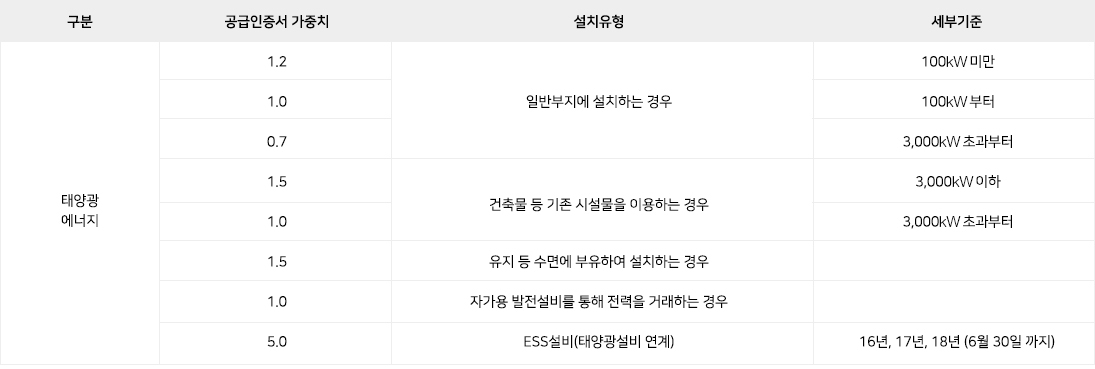

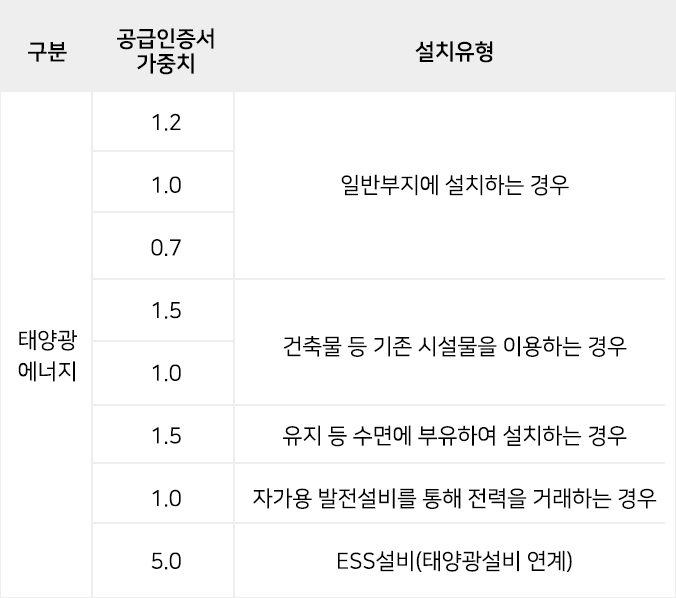

The weight of REC
The weight shall be determined and notified by the Minister of Trade, Industry and Energy considering the impact on the environment, technology development and industry activation, and effect on the cost of power generation,
potential amount of natural resources, reduction of greenhouse gas emission, and the weight of REC is reexamined every three years. (If needed, the reexamination period can be reduced.)
Fixed price contract bidding system
Competitive bidders of the fixed price contract are selected and operated in order to promote the domestic PV-related industry,
support the stable fulfillment of obligation for the mandatory supply amount, and induce the stable investment of the PV power generation companies
Eligible new renewable energy sources
PV and PV-related ESS (However, sole bidding with ESS that excludes PV is not allowed.)
Procedure of operating the fixed price contract bidding system
Request for submission:Request for selection by mandatory power supplier
Announcement:Announced on the website of the New & Renewable Energy Center
Submission:Submitting the bidding application and attachments
Evaluation:Proceeding with metric evaluation of bidding price and non-metric evaluation of business statement according to the evaluation criteria
Selection:Selecting within the range of announced capacity in the descending order of total score
Distribution:Distributing the selected power plant to the mandatory power supplier
Contract:concluding the contract between the selected power plant and the mandatory power supplier
Procedure of carrying out the PV power generation business (RPS: Renewable Energy Portfolio Standard)
01
Field verification
Confirmation of KEPCO-linked capacity,
identification of permissible areas,
checking of the installation capacity
02
License of power generation business
Document submission and approval
of the relevant regional government
03
Permission for development activity
Document submission and approval
of the relevant local government
04
Business registration
registration in the tax office
05
Application of power supply
and demand contract
Field verification and determination of entry point,
and payment of construction cost
08
Report of construction plan
Reporting to the relevant local government,
selection of the electrical supervisor
(occurrence of supervising cost)
07
Construction of PV facilities
Civil-engineering work,
construction of structure,
electrical work, KEPCO’s interconnection work
08
Pre-service inspection
Application for the inspection of the Korea Electrical Safety Corporation after the completion of the construction of the facilities
09
Power supply and demand contract
Sales of the produced electric power (monthly sales at the SMP of the Korea Electric Power Corporation)
10
Report on the start of commercial operation
Report of the documents to the relevant local government
11
Verification of installation
Installation verified by the Korea Energy Agency, signing up for the membership for the Korea Power Exchange
12
Commencement of the commercial operation
Sealing of the meter and starting the PV power generation
13
Issuance of REC
Issuance of the Renewable Energy Certificate (REC)
14
Sales of REC
Sales of REC at the spot market or bidding market (April, October)

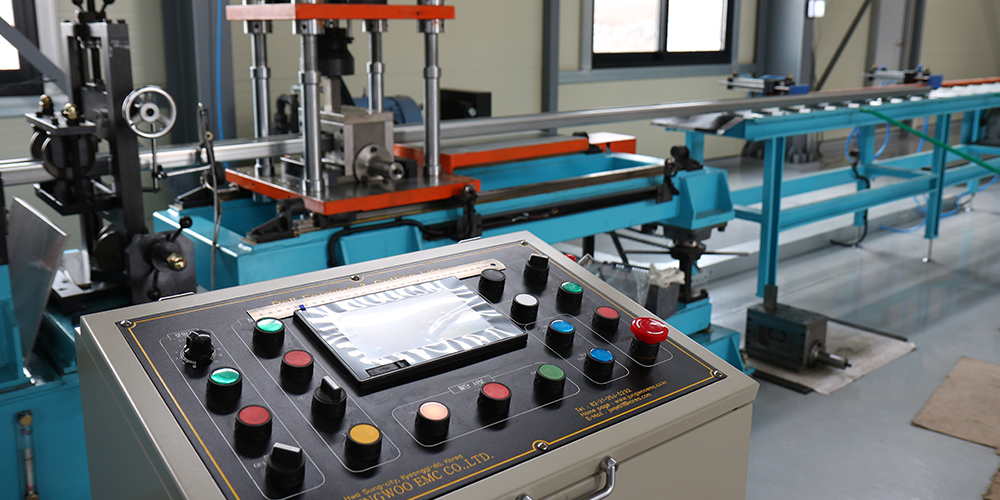

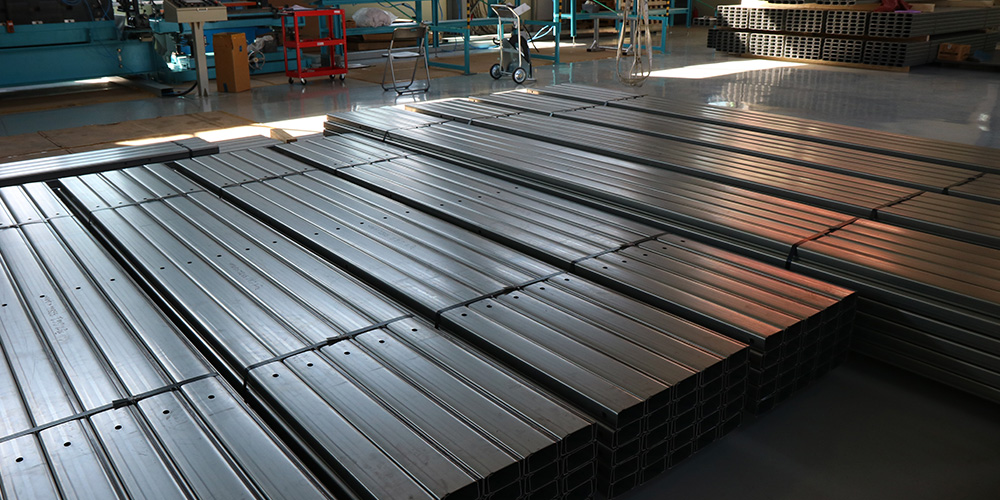

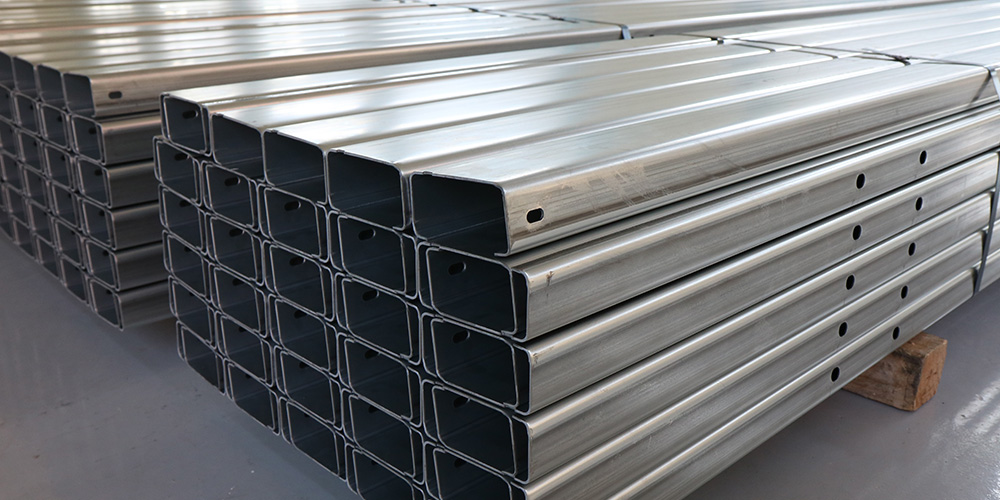

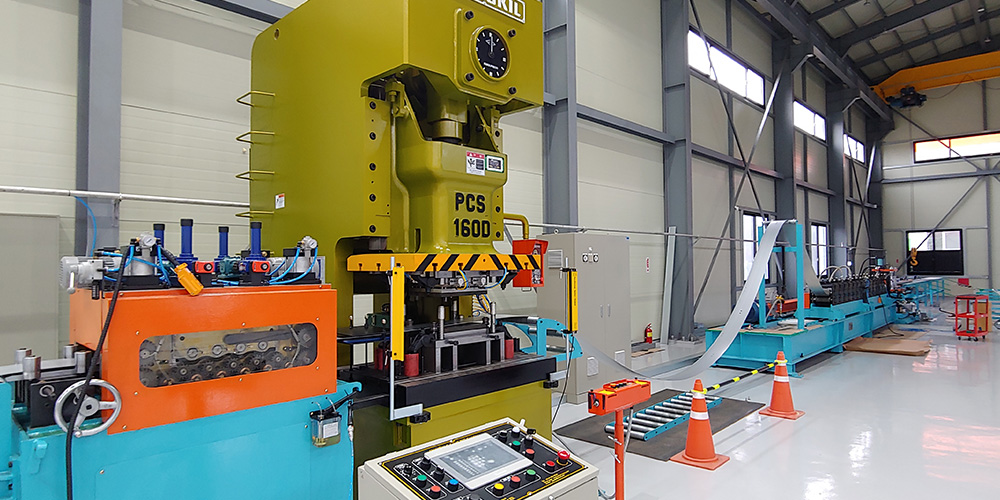

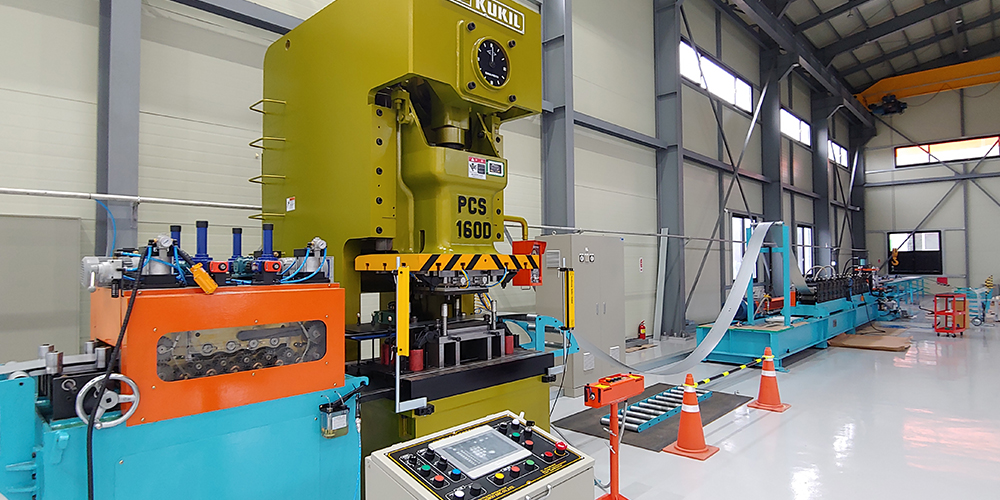

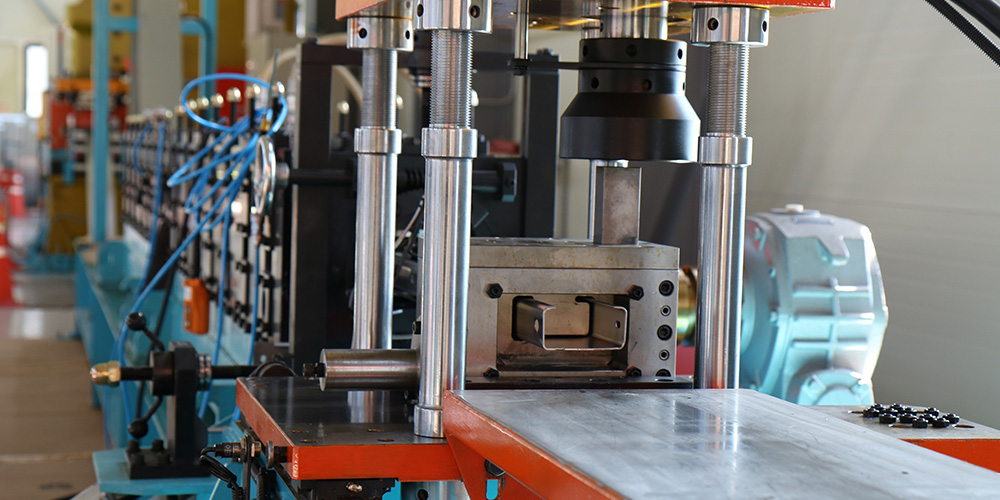

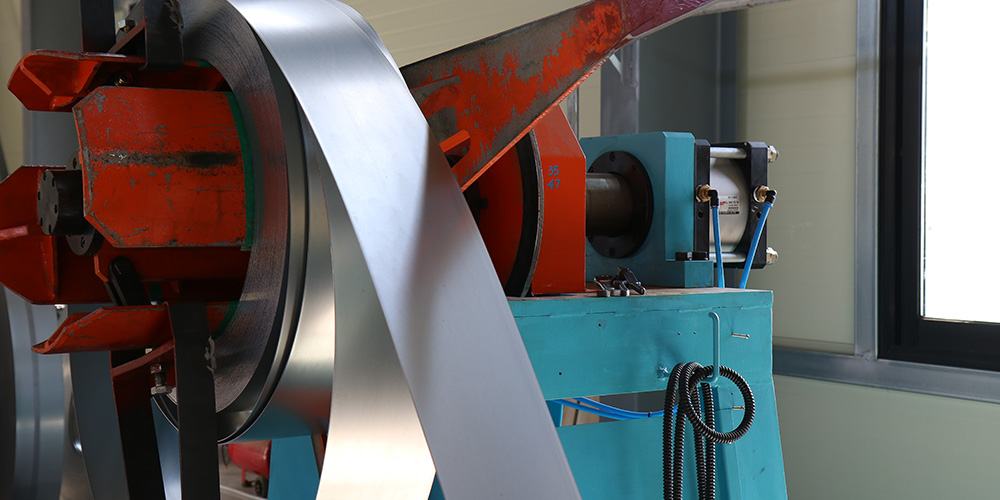

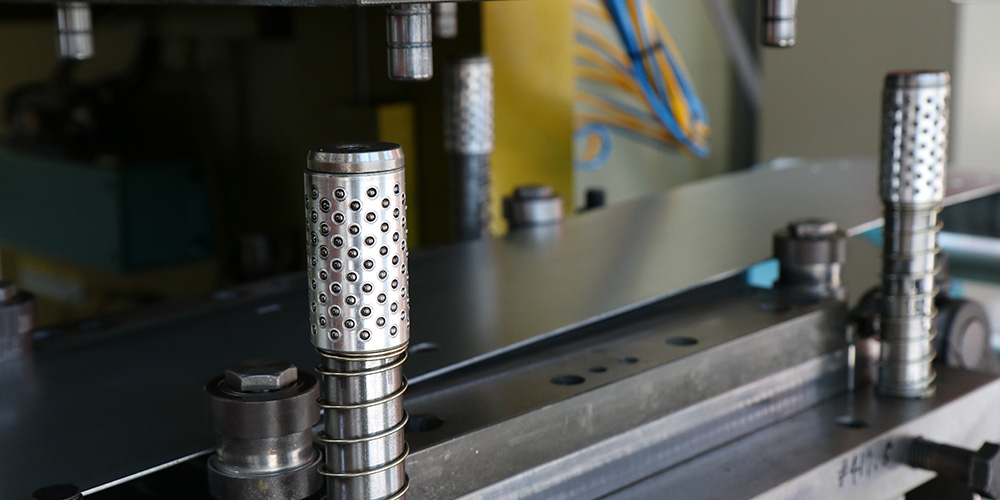

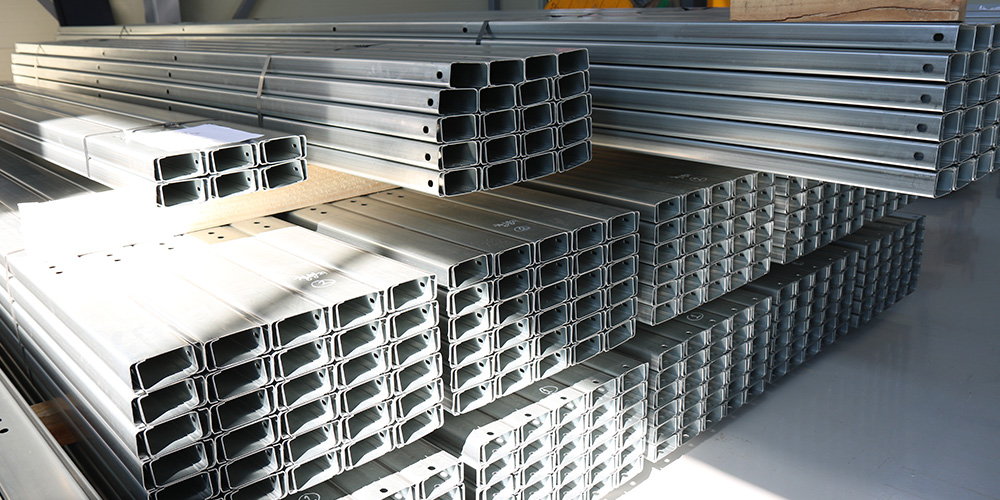

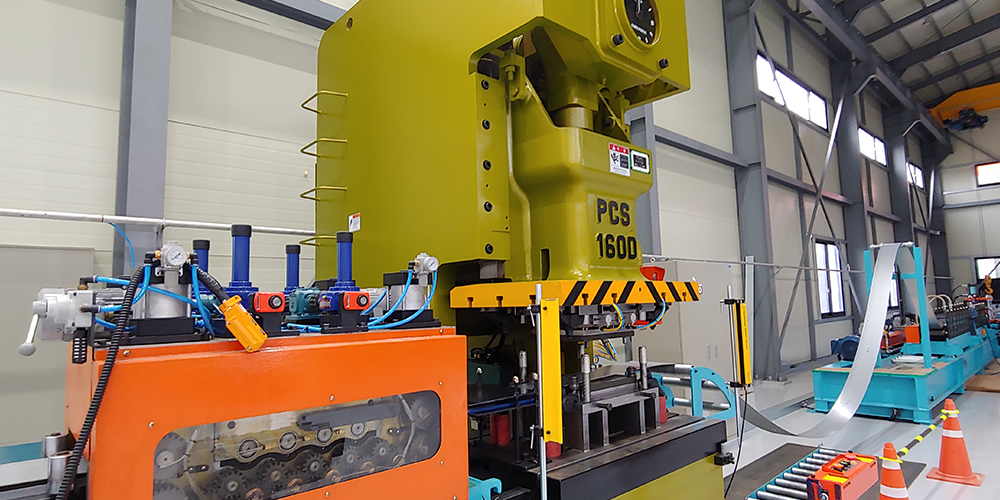

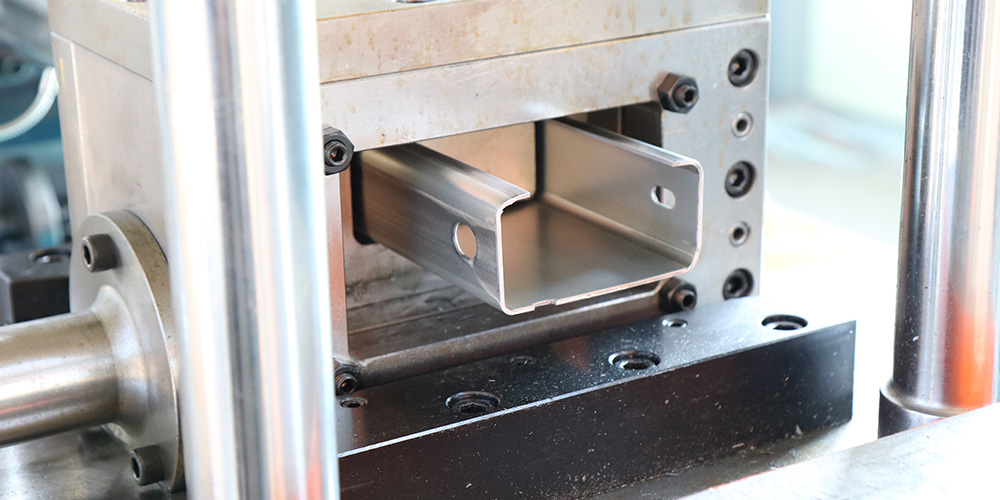

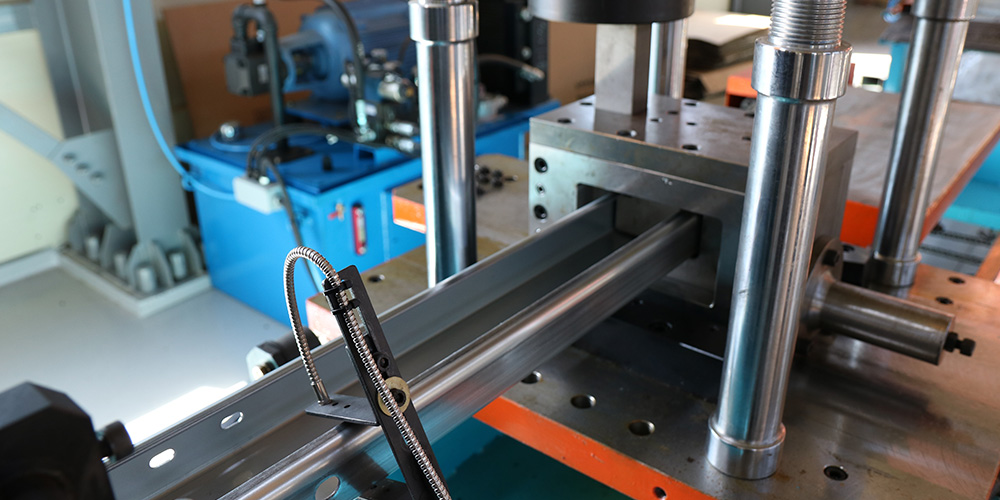

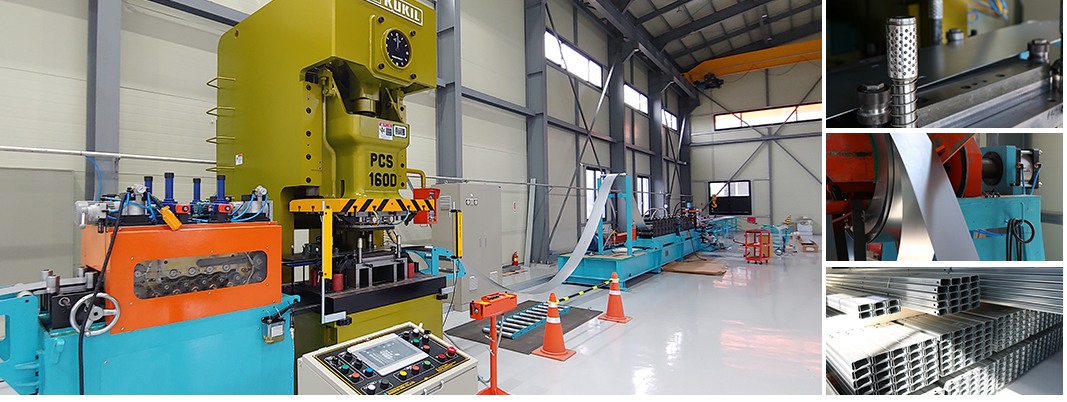

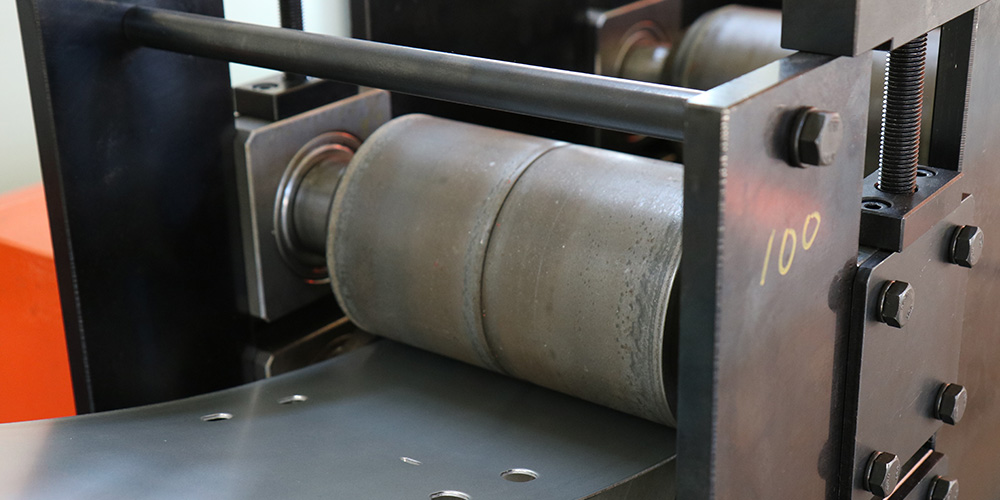

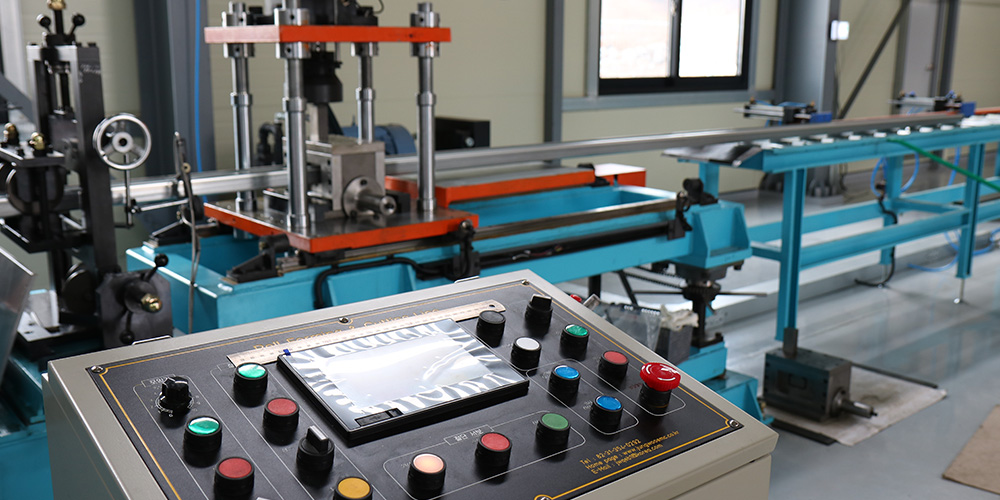

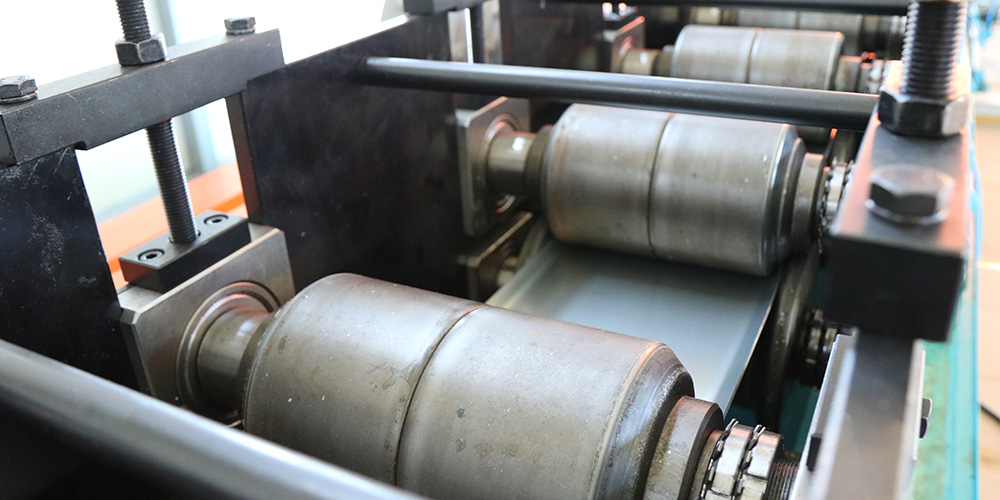

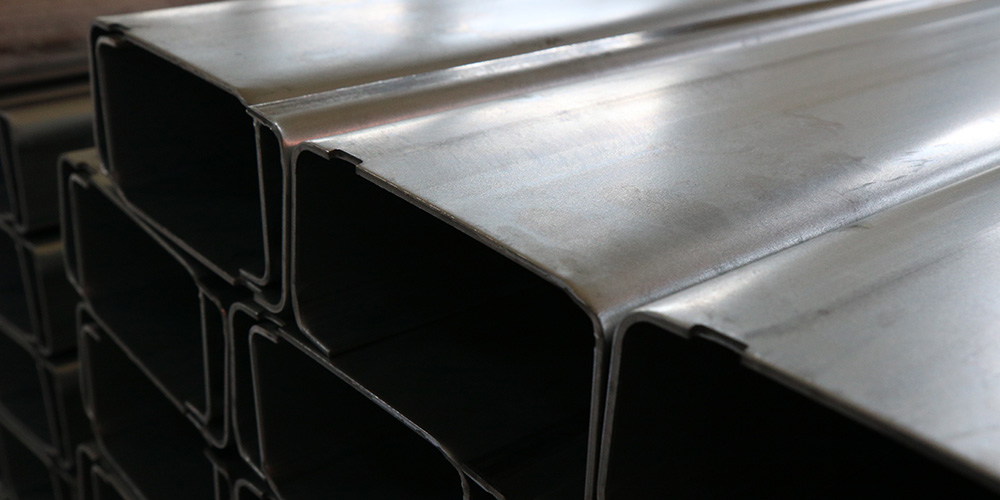

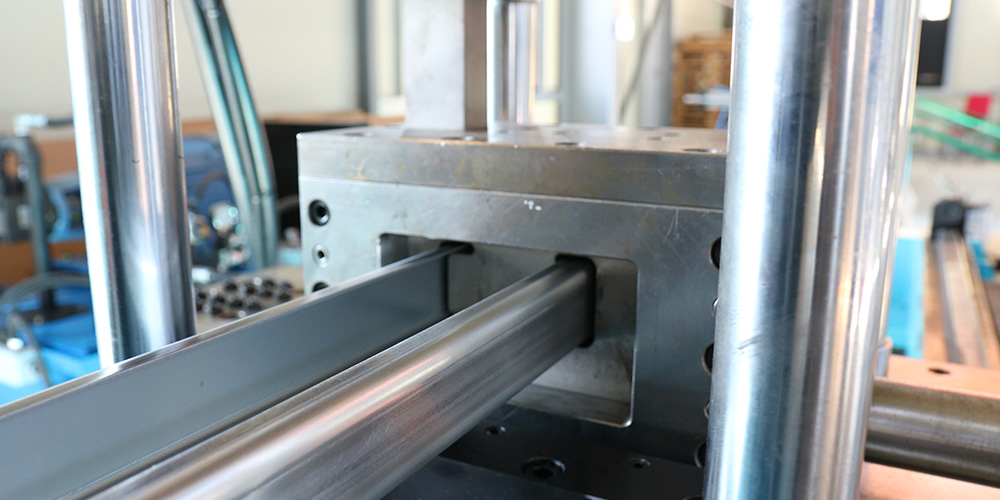

C channel forming machine

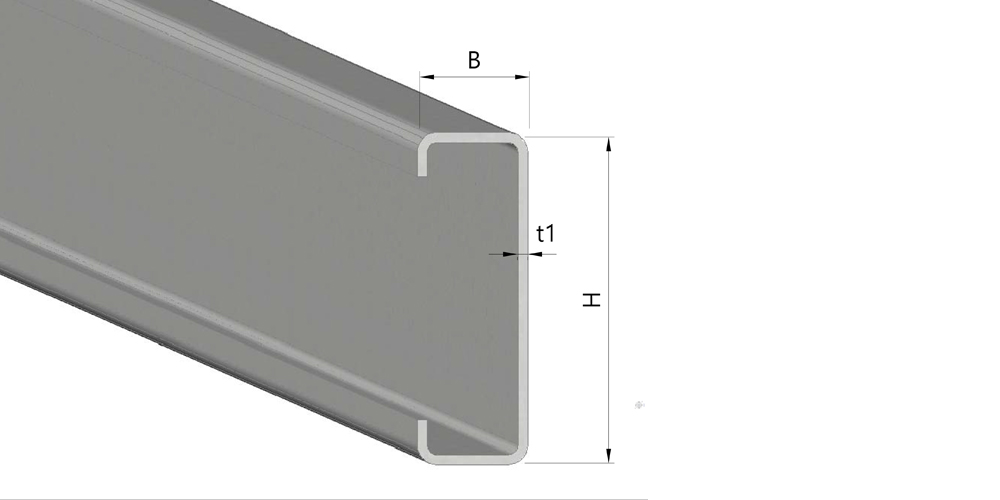

Product specification

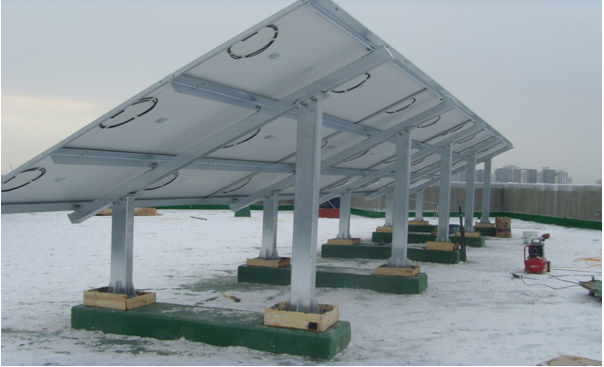

Structure – PosMAC
Corrosion is the biggest problem in the characteristics of the PV power generation structure which is always exposed to the external environment.
We construct the eco-friendly and semi-permanent structure by using PosMAC which has 5~10 times more corrosion resistance than the general continuous galvanized iron (GI, GI(H)) with the same plating amount
Result of the corrosion resistance on the cross section after outdoor experimental assessment (Korea Conformity Laboratories)
- PosMAC3.0 shows better cross section corrosion than GI(H) and Galvalume.
- As the ground iron of the cut surface is exposed, red rust occurs also on the cut surface of the PosMAC3.0 in the early days after outdoor exposure.
However, over the lapse of time, POsMac3.0’s unique corrosion oxide (Simonkolleite) is generated, decreasing the red rust area.
- When the thickness of all base metal of PosMAC3.0 is over 1.6t, the cut surface is not fully covered by the Simonkolleite after a year has elapsed.
Therefore, in that case, we recommend maintenance painting (on page 19 and 22 of the catalog).
If the red rust is not allowed on the cut surface from the beginning of construction though the base metal is not thicker than 1.6t,
we would like to recommend maintenance painting depending on the customers’ choice.

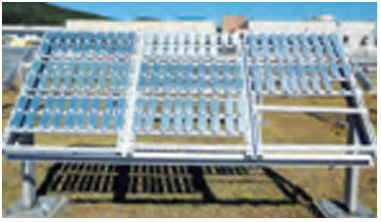

Outdoor exposure test
Note : Result of outdoor exposure in the Seosan Chemical Industrial Complex (Oct. 2012 ~ Oct. 2014 by Korea Conformity Laboratories)
Occurrence of white rust on PosMAC3.0
PosMAC3.0 has a strong red rust resistance for protecting the ground iron by forming a white rust oxide of compact structure called Simonkolleite.
Therefore, white rust can occur like general galvanized materials.
In order to prevent white rust before the construction of PosMAC3.0, you should pay attention to the following:

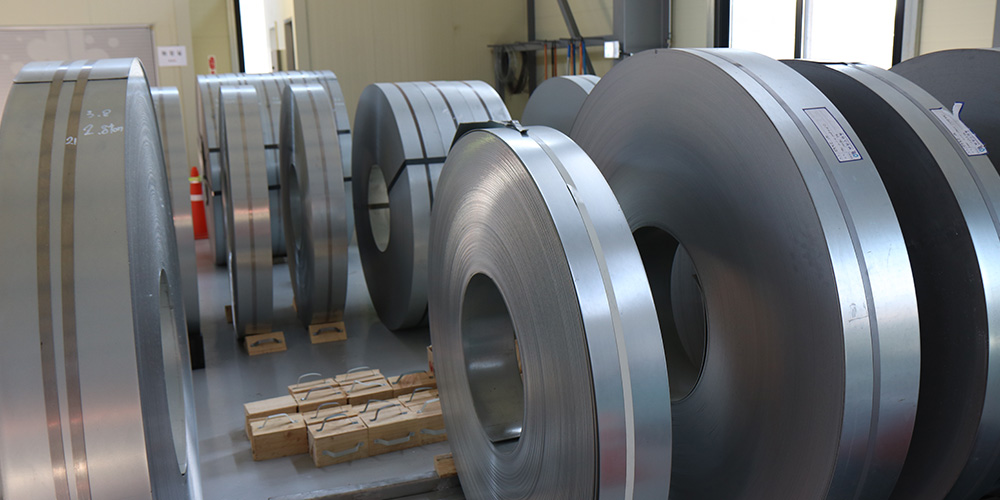

Storage of materials before the construction of PosMAC3.0
- Coils, sheets and processed products should be stored in a dry and well-ventilated place.
When those materials are left on the floor, white rust can be generated due to the vapor arising from the ground.
In case of coil, lay an airtight covering like vinyl on the floor, install 5 pieces if thick lumber (recommending thicker than 10cm) on the packing material,
and then store up the coil for good ventilation.
- Cover the banding-packaged coils, sheets or processed products with the covering to shield from the rain and, when the rain stops,
remove the covering to dry and eliminate the moisture inside.
Avoid putting the banding-packaged coils, sheets or processed products on the floor in a humid environment,
and put the vinyl on top of them as it accelerates reaction with moisture.
- When the coils are stored for a long time, white rust can occur on the surface. Therefore, we recommend you to use the coil early on a first-in first-out basis.
- You should use all the banding-packaged coils after unpacking and, even in unavoidable cases, use them as quickly as possible.
Galling and scratch resistance of PosMAC3.0
As PosMAC3.0 has high hardness vis-à-vis GI, its galling and scratch resistance are excellent.
Therefore, you can reduce contamination of molds drastically when pressing compared with the GI
Hardness of the plated layer
- PosMAC3.0 : Hv 110-130
- GI : Hv 60 ~ 80
- Galvalume: Hv 80 ~ 100
Appearance after friction test
Experimental conditions
- Experiment settings: Moving distance 200mm, moving speed 20mm/sec.
- Average friction section: Starting distance 30mm, end distance 170mm
- Applying P-DBH treated oil
Chemical resistance of PosMAC3.0
- PosMAC3.0 has weight loss of plated layer less than the GI in the acid environment and less than galvalume in the alkaline environment.
- Especially, GI has inferior chemical resistance in the strong acidity of pH 1~2, and Galvalume in the strong alkalinity of pH 13~14.
- PosMAC3.0 has excellent chemical resistance, thereby being suitable for agricultural cattle shed or pigsty, or building materials
Analysis of the weight loss of the plated layer by the plating material depending on pH

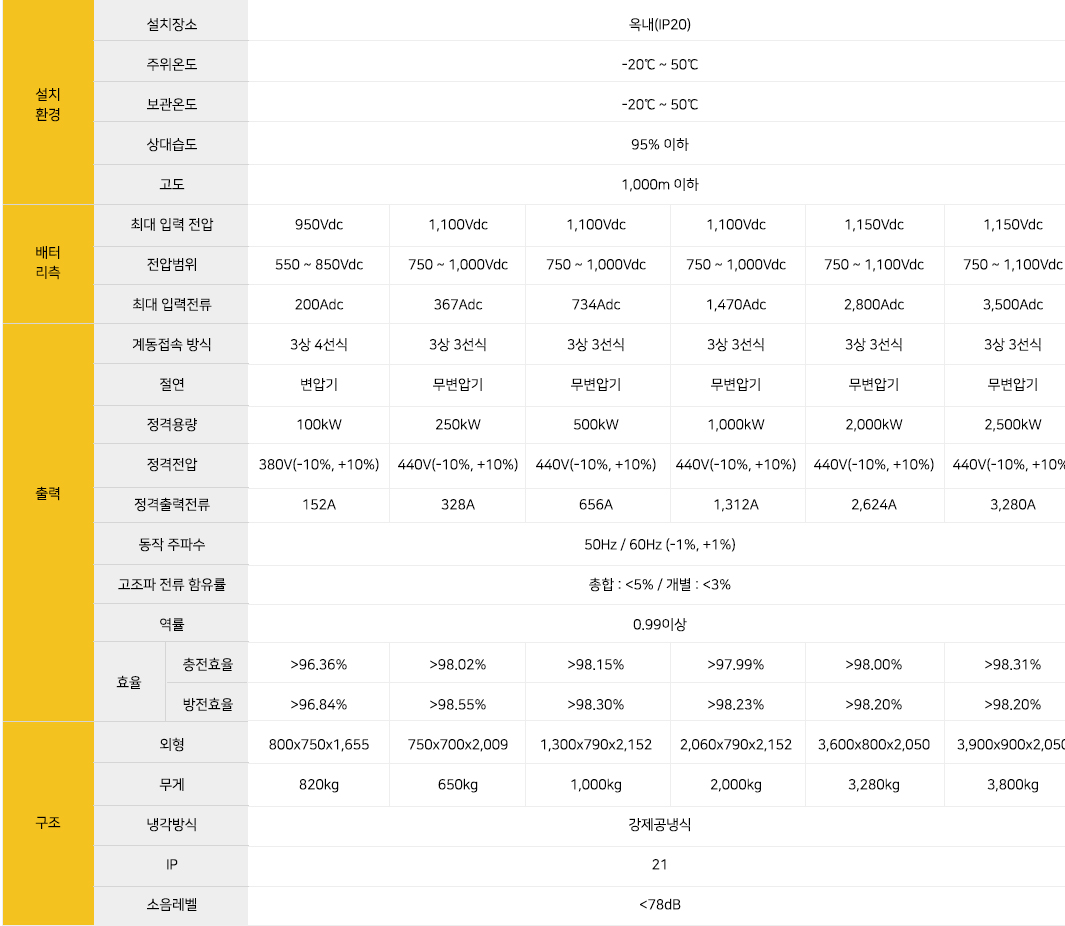

ESS(energy storage system)
ESS is a storage system which stores the electric power like a large water tank to be used temporarily when the power is insufficient or needed.

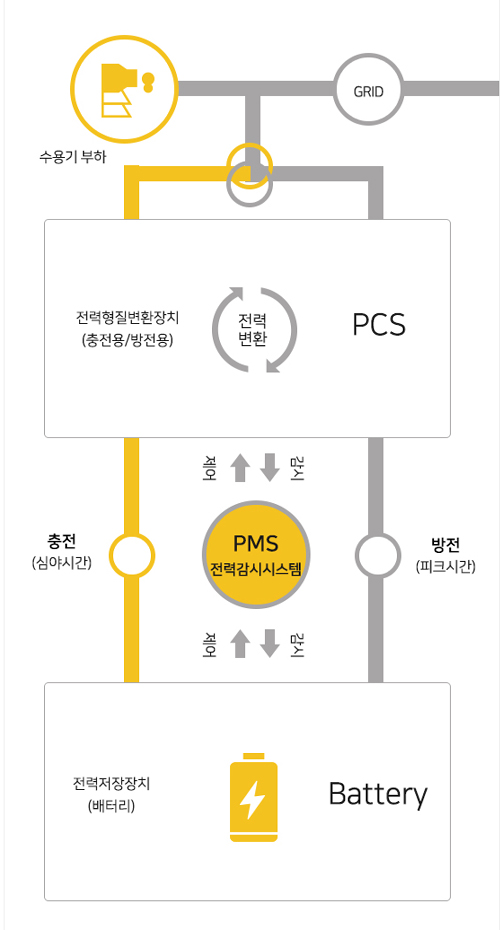

Composition of ESS

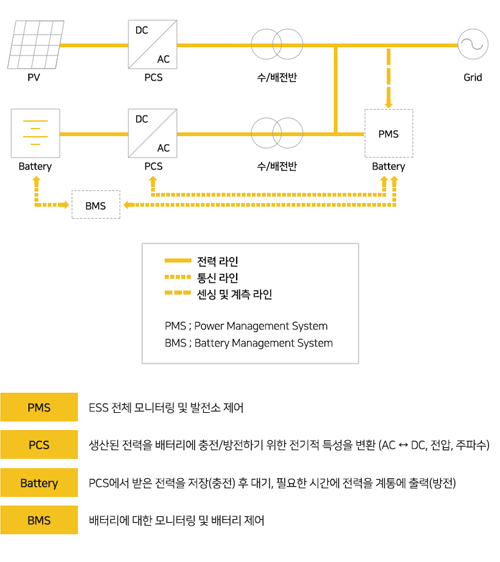

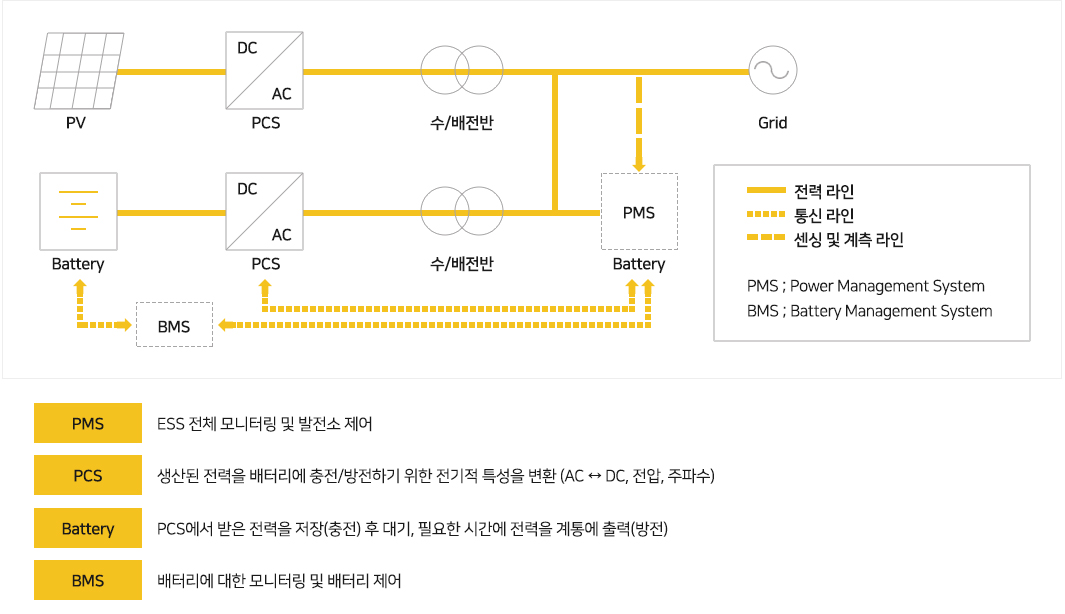

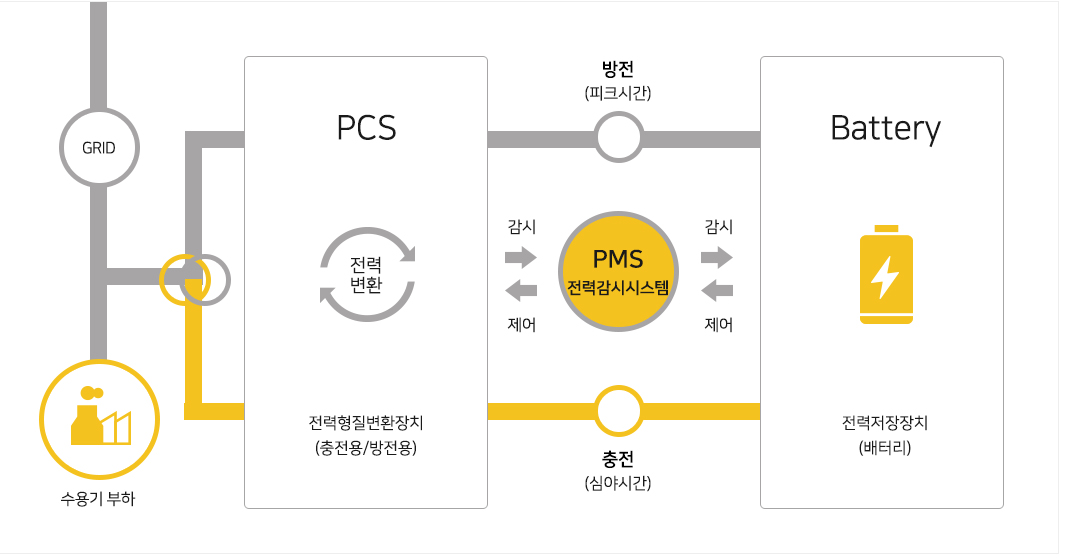

System configuration (linked with high voltage)

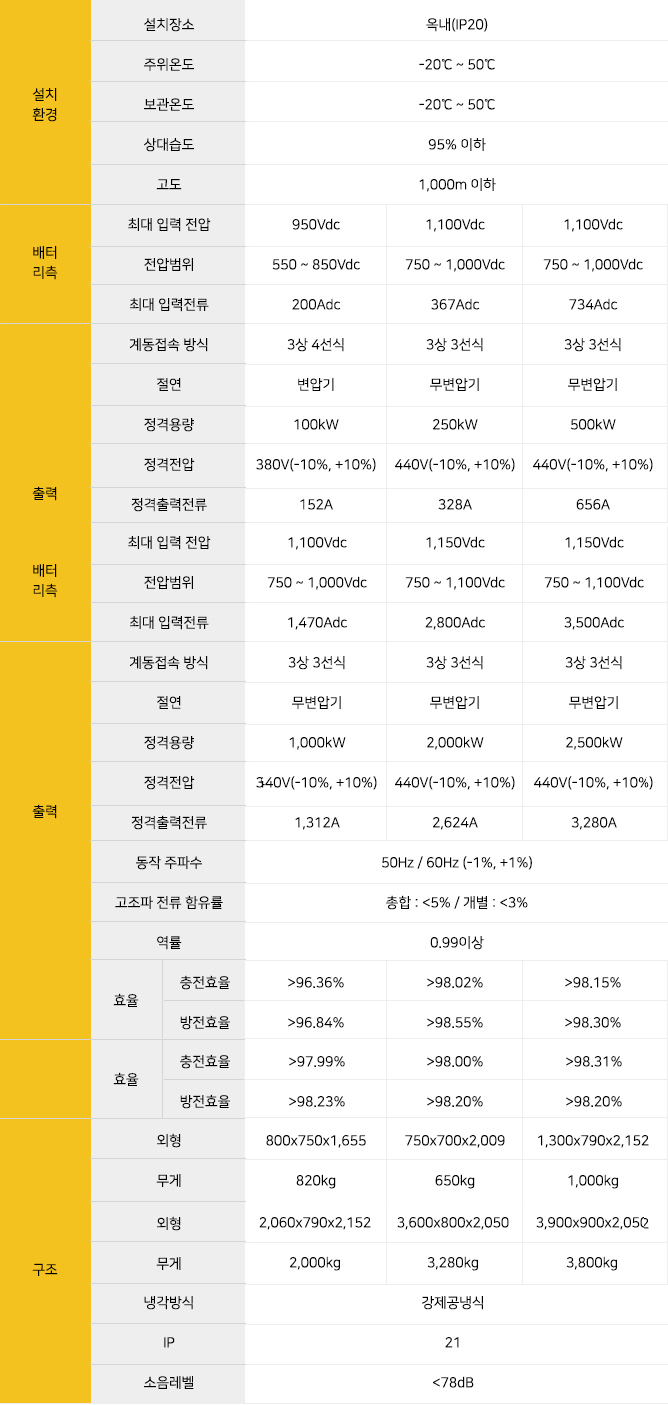

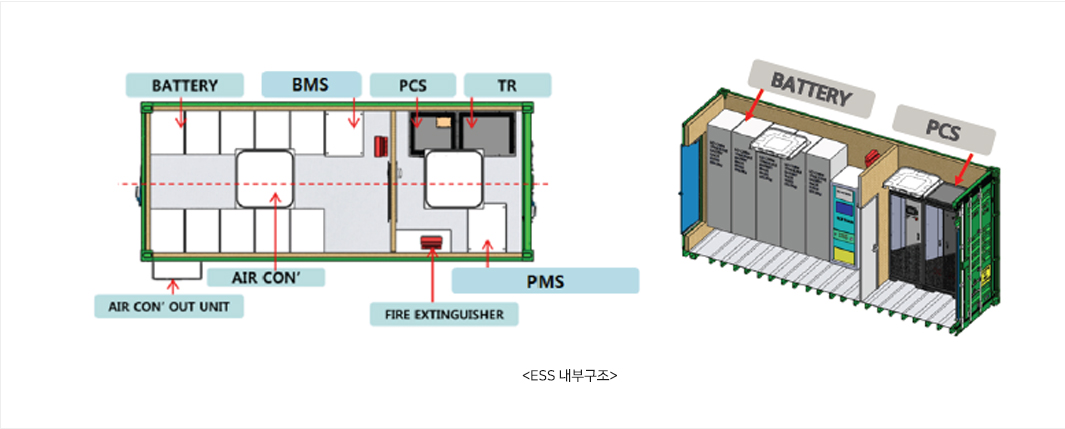

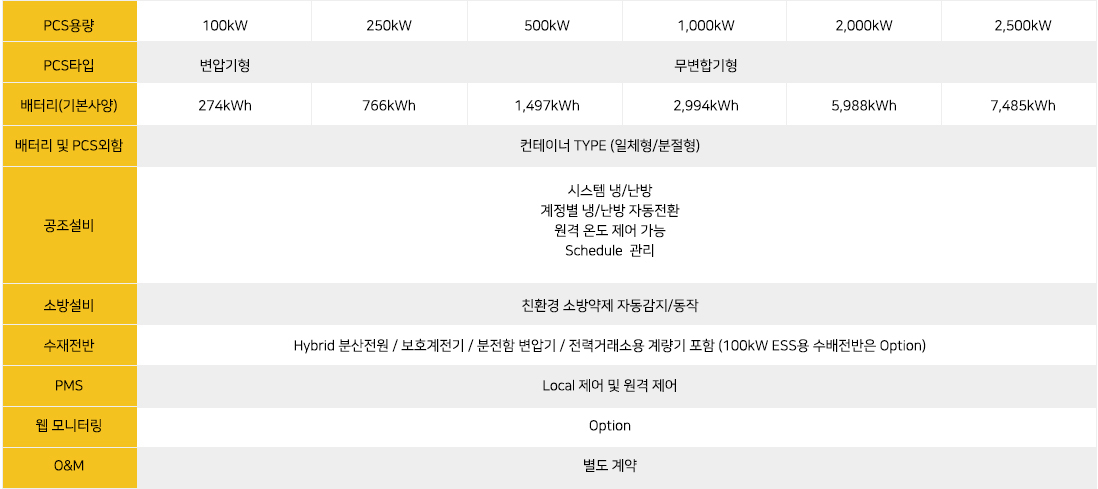

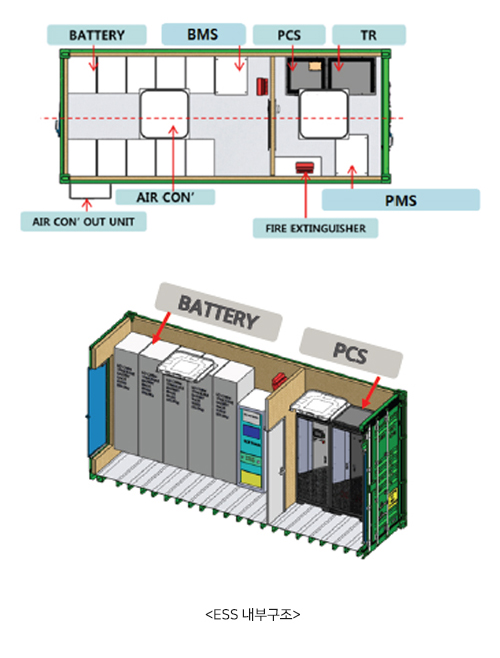

Configuration of ESS Container

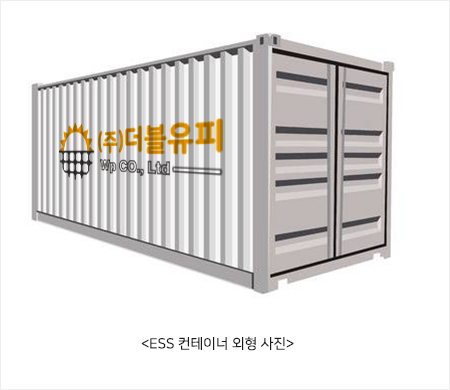

Container-typed ESS
Container type: integral type/ segmented type
- Designing and constructing considering the site conditions
Electric room not required
Enhancing the system durability
Provision of the turn-key system
- Providing PV ESS of plug-in type
by capacity
Maximization of yield
- Securing the maximum system output efficiency
through system analysis
Corrective maintenance
- Reviewing the system design and feasibility
through the PV power generation data analysis
- Designing standard system
by specialized capacity
BATTERY
- Ensuring price competitiveness
through the long-term contract
with a major battery manufacturer in Korea
- Manufacturer’s guarantee of battery’s life time/
performance (Issuing a certificate of quality)
Total solution (PCS, PMS)
- Securing the edge in performance,
quality and price competitiveness of PV power generation and ESS product
as a professional development company of total solution
Maintenance
- Establishing a nationwide A/S network and operating the call center
(Operating A/S center in Ulsan, Gwangju, Daegu and Cheonan)
- Capable of responding to failure within 24 hours anywhere in the country after receiving a report of failure
- Prevention of failure and maintenance through a walk-around inspection

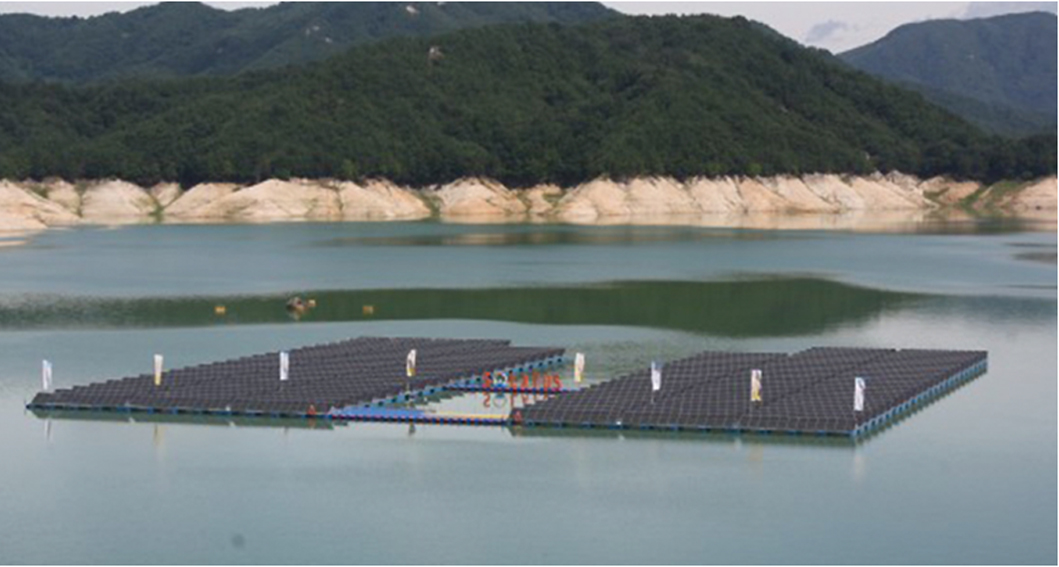

Floating PV power generation
About the floating PV power generation
- The floating PV power generation is the same as the existing PV power generation,
but it generates the power not on the land but on the surface of the water.

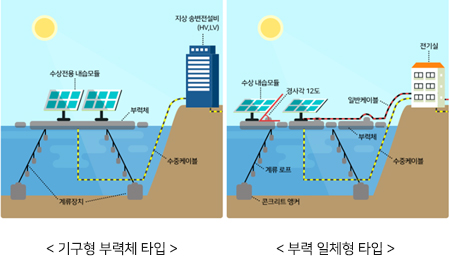

- This system consists of the buoyant structure used for floating the PV equipment, structure connecting the floating structure,
and the mooring facility for fixing the whole facilities stably.
- -We install the balloon-type buoyant structure for the place where water level change is significant and the flow rate is fast
such as a wide reservoir or dam and the buoyancy integral type for the place where the water level change is small and the flow rate is slow
such as a pond or a small reservoir.

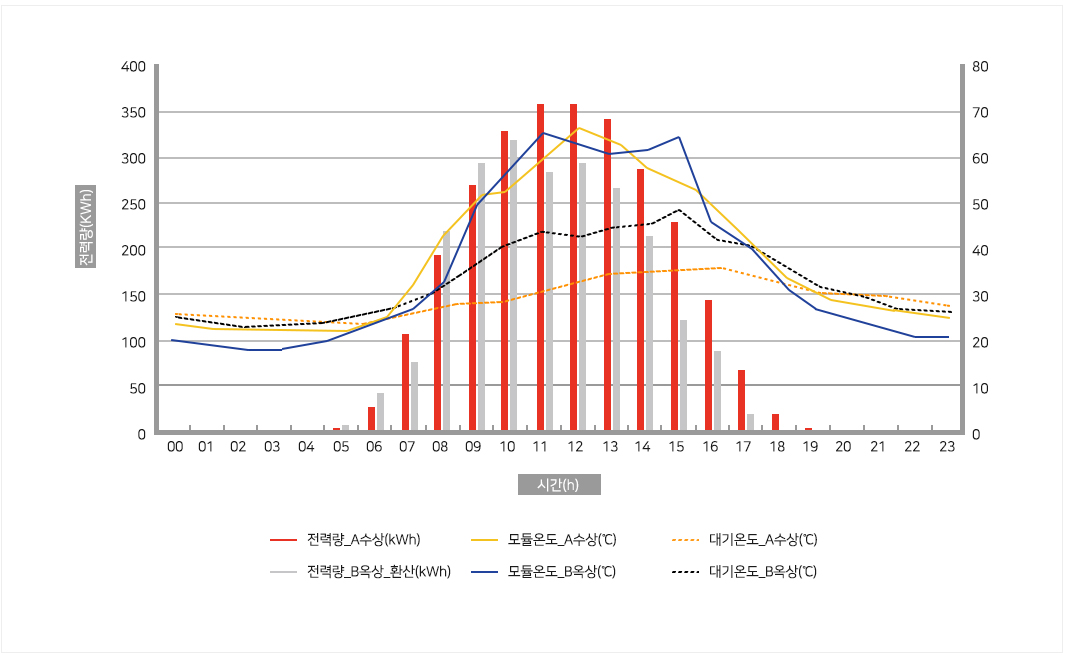

Comparison of daily data between the: A. Floating PV system and B. Rooftop PV system
Due to the proper temperature of the module, the power generation efficiency on land during the summer when the temperature is high is not good.
However, the efficiency on the water surface is much higher because the water temperature lowers the ambient temperature.

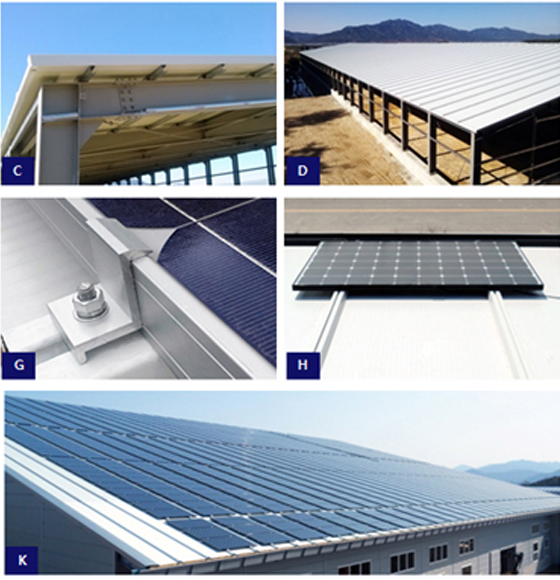

Solar Roof
Characteristic of Solar Roof
Rooftop renewal
- Changing the old roof into a new one
by overlaying the solar roof on the top of it
Insulation
- Excellent insulation effect of the polyurethane roof panel
Design
- Innovative design of the Solar Roof and structure
Water proof
- Perfectly blocking water leak with non-exposure bolt
Roof type PV system
- The rail structure is capable
of installing the PV module without an additional structure
New renewable energy
- Eco-friendly company using the PV energy
PV power generation of new building
Characteristic of Solar Roof

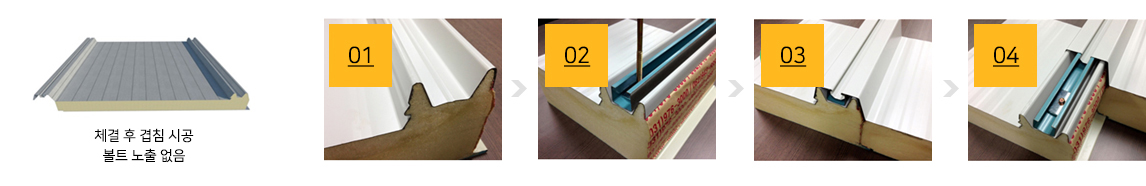

▶ Panel construction type of fixing first and then overlaying
▶ No exposure of fixing part – perfectly blocking water leak
▶ Internal and external double connection structure
▶ T-grooved integral urethane flame-retardant panel
▶ Installation of PV module of T-bolt connection method
▶ Installation of simple structure
▶ Reduction of construction period and cost
▶ Verified wind load bearing (45m/sec)

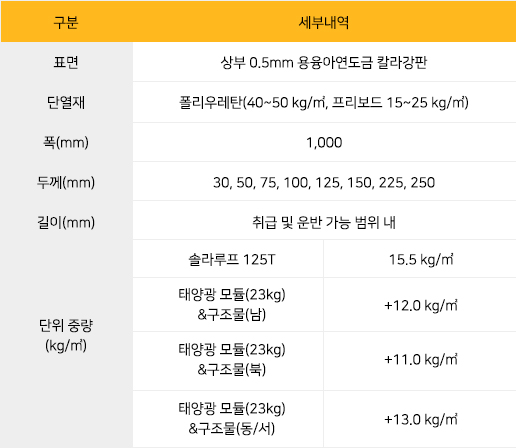

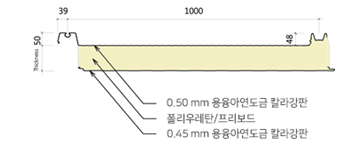

Specification of Solar Roof products
Comparison of Solar Roof and general panel

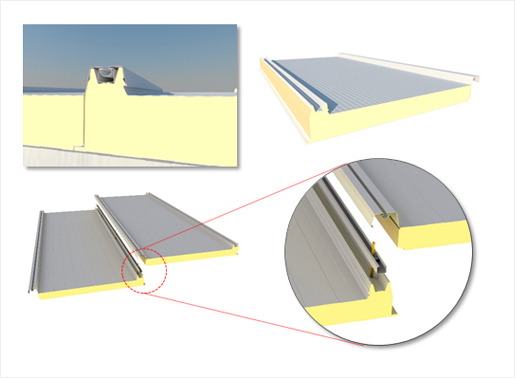

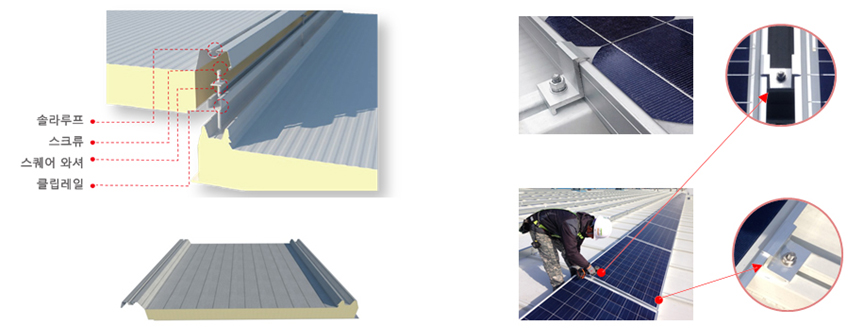

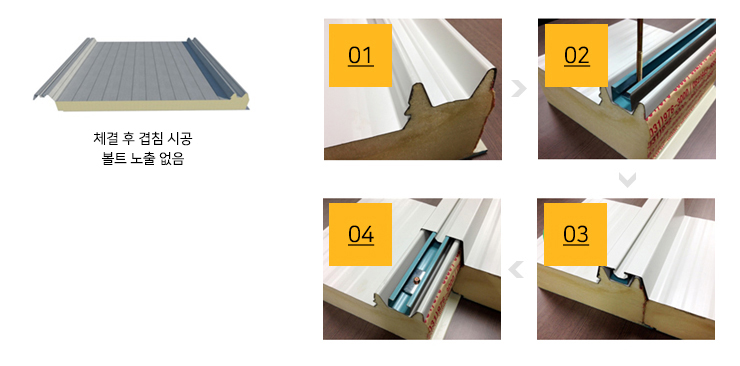

Solar Roof panel _ product shape and fixing details

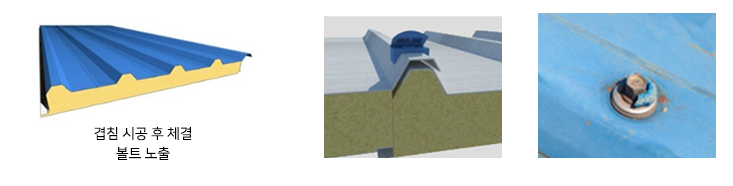

Comparison of general panel _ roof shape
Comparison of installation method

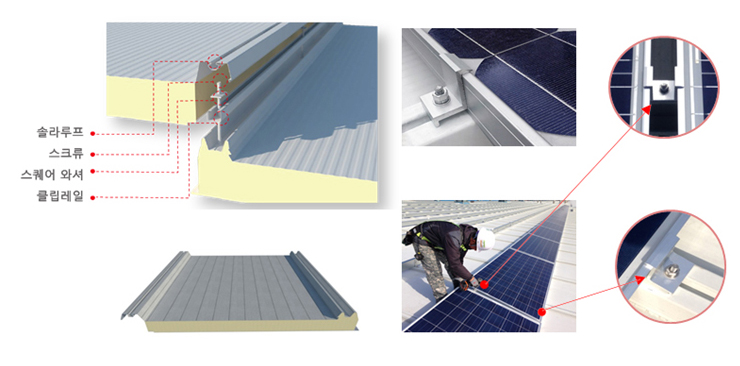

Comparison of fixing between Solar Roof panel and PV module
General panel _ general clamp type

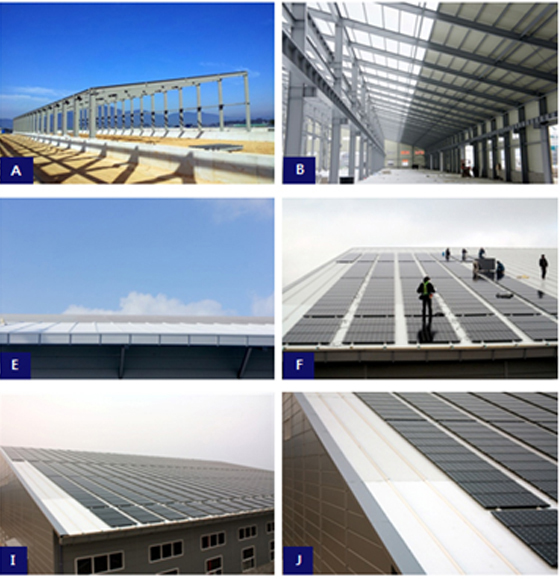

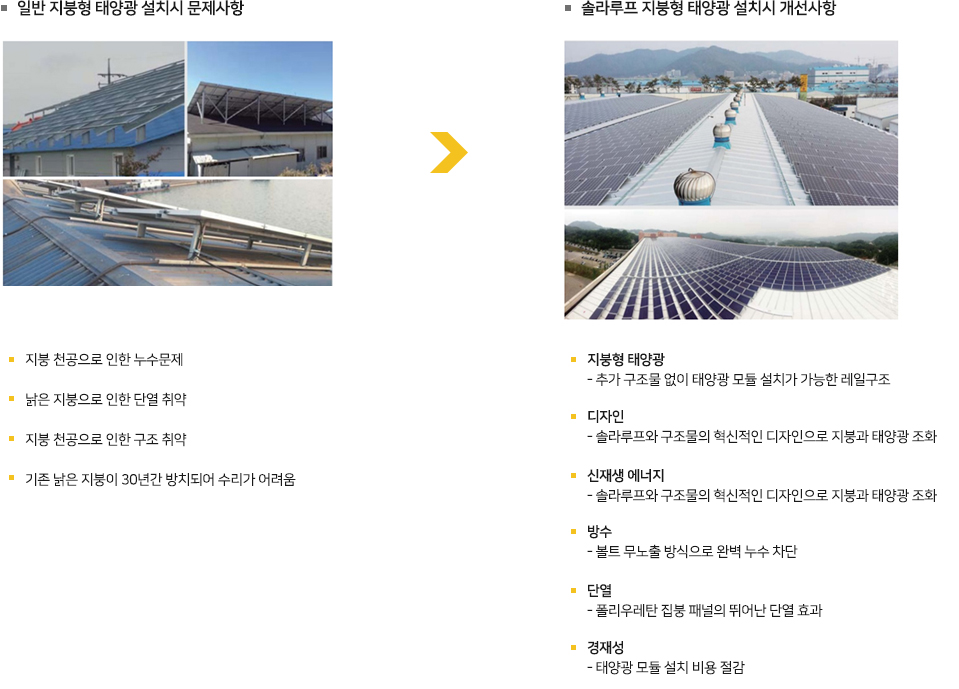

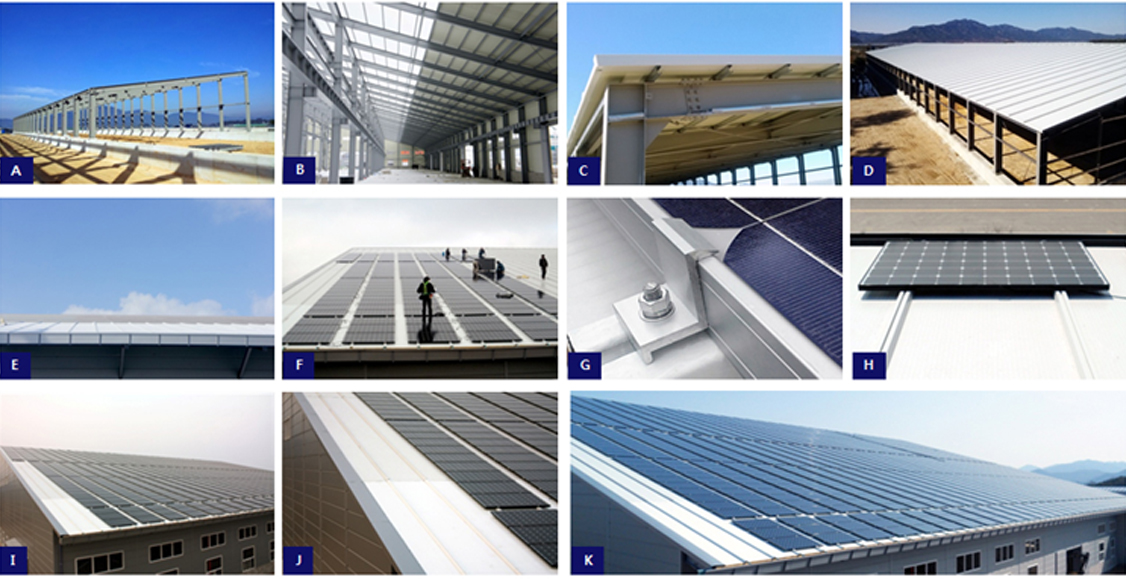

Installation comparison of the Solar Roof and the general PV system

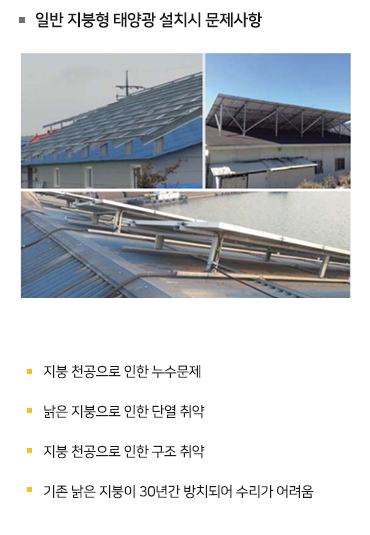

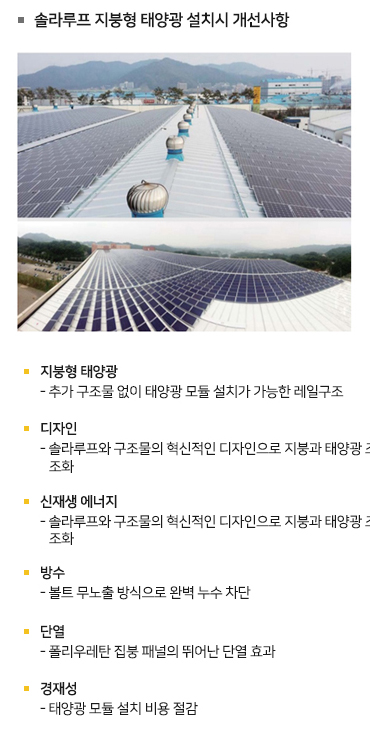

Problems when installing a general roof-type PV system
Problems when installing a general roof-type PV system
If you construct Solar Roof Panels overlaying the whole roof when newly building a structure, you can install the PV module easily, quickly and economically.
We install the PV module using T bolt without drilling holes.
There is no load burden as water leak is blocked and the structure of the PV module is simple.
We establish the PV power plant integrated with the building roof and PV module.
Solar Roof Renewal
Characteristic of Solar Roof renewal and PV power generation
Method of overlaying a Solar Roof on the old roof
Characteristic of Solar Roof R-30
- Roof renewal effect
- Capable of establishing PV power plant on any decrepit roof
- Improving the appearance of the old roof and prolonging its life
- Improving insulation effect and perfectly repairing the leakage area
- Reducing the load burden of the building with panels exclusively for renewal
- Installing PV modules without drilling by connecting with T-bolts
- Simple installation and solid structure
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
CEO: Kang Geon-min,
Customer support:82-061-905-7913, FAX : 82-61-725-1379, EMAIL : wp2015@wp-solution.net, Business registration number : 551-87-00154
COPYRIGHT(C) 2015 WP.CO.Ltd. ALL RIGHT RESERVED.
